Produktdetails
Herkunftsort: Henan, China
Markenname: ZHICHENG
Zertifizierung: ISO
Modellnummer: ZCF
Zahlungs-u. Verschiffen-Ausdrücke
Min Bestellmenge: 1
Preis: $13.20/sets 1-99 sets
Verpackung Informationen: Innen: Kunststofffolie, dann in Karton.
Außenseite: sichere festgebackene Export-Plywood-Kase, M
Versorgungsmaterial-Fähigkeit: 15000 Satz/Sätze pro Monat
Warranty: |
1year |
Customized support: |
ODM, OEM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product name: |

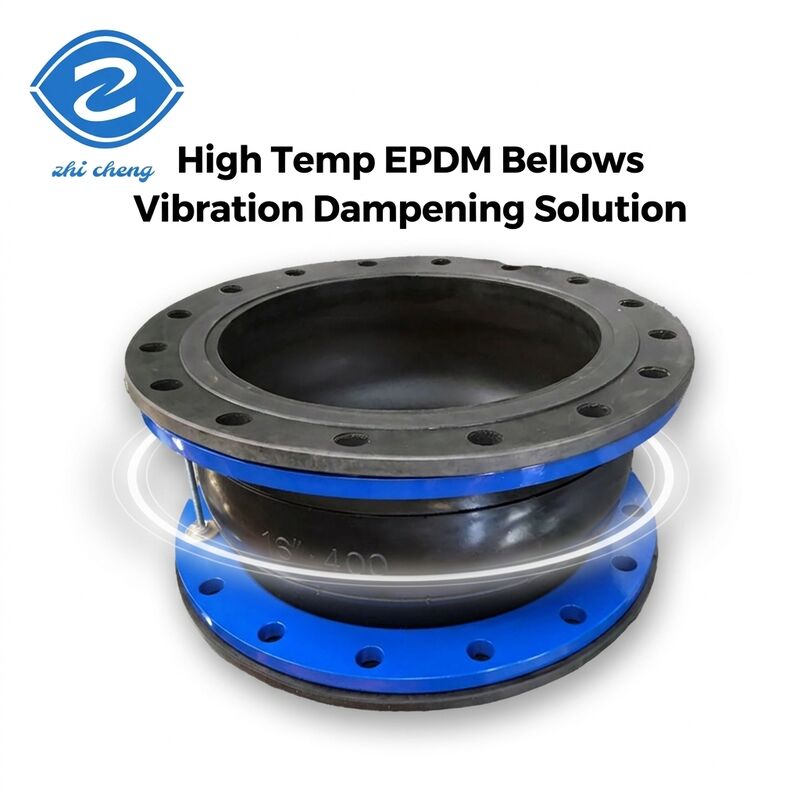

Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in special -30℃-150℃) |
Applicable media: |
Air,water,sewage,acid,oil,etc. |
Nominal diameter: |
DN25-DN3000 |
Flange material: |
Carbon steel galvanized,Stainless steel etc. |
Rubber material: |
NR,EPDM,NBR etc. |
Flange Standard: |
DIN,ANSI,JIS etc. |
Factory address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, etc. |
Warranty: |
1year |
Customized support: |
ODM, OEM |
Technics: |
Forged/vulcanization |
Connection: |
Flange |
Shape: |
Equal |
Head Code: |
Round |
Product name: |
Hot Selling Single Sphere Rubber Expansion Joint |
Working Pressure: |
PN6-PN40 |
Working Temperature: |
-15℃-80℃(in special -30℃-150℃) |
Applicable media: |
Air,water,sewage,acid,oil,etc. |
Nominal diameter: |
DN25-DN3000 |
Flange material: |
Carbon steel galvanized,Stainless steel etc. |
Rubber material: |
NR,EPDM,NBR etc. |
Flange Standard: |
DIN,ANSI,JIS etc. |
Factory address: |
Henan, China |
Port: |
Qingdao, Tianjin, Dalian, Shanghai, Ningbo, Guangzhou, Yiwu, etc. |
|
Material von Gummiverbindungen
|
|
|
||
|
- Nein. Ich weiß nicht.
|
Name
|
Material
|
||
|
1
|
Außen- und Innenkautschuk
|
NR, NBR, EPDM, SBR, BR usw.
|
||
|
2
|
Größe
|
Die in Absatz 1 genannten Anforderungen gelten nicht für die in Absatz 1 genannten Erzeugnisse.
|
||
|
3
|
Rahmen
|
Gewebe aus Nylonkarten
|
||
|
3
|
Druckring
|
Stahldrahtstränge
|
||
|
5
|
Flansche
|
Q235 Kohlenstoffstahl, 304 Edelstahl usw.
|
||
|
-15 °C ~ +80 °C (-30 °C ~ +150 °C speziell)
|
|
|
|||
|
Anwendbare Medien
|
Luft, Druckluft, Wasser,Meereswasser, heißes Wasser, Öl, Säure und Alkali usw.
|
|
|
||
|
Hauptverbindungsgröße der Gummiverbindung
|
|
|
|
|
|
|
||||||
|
Nominaler Durchmesser ((DN))
|
|
Länge
|
Achsverschiebung
|
|
Horizontale Verschiebung
|
Abbiegungswinkel
|
||||||
|
mm
|
Zoll
|
Ausdehnung ((mm)
|
Komprimierung ((mm)
|
mm
|
mm
|
(a1+a2) °
|
||||||
|
32
|
1 und 1/4
|
95
|
6
|
9
|
9
|
15°
|
||||||
|
40
|
1 und 1/2
|
95
|
6
|
10
|
9
|
15°
|
||||||
|
50
|
2
|
105
|
7
|
10
|
10
|
15°
|
||||||
|
65
|
2 und 1/2
|
115
|
7
|
13
|
11
|
15°
|
||||||
|
80
|
3
|
135
|
8
|
15
|
12
|
15°
|
||||||
|
100
|
4
|
150
|
10
|
19
|
13
|
15°
|
||||||
|
125
|
5
|
165
|
12
|
19
|
13
|
15°
|
||||||
|
150
|
6
|
180
|
12
|
20
|
14
|
15°
|
||||||
|
200
|
8
|
210
|
16
|
25
|
22
|
15°
|
||||||
|
250
|
10
|
230
|
16
|
25
|
22
|
15°
|
||||||
|
300
|
12
|
245
|
16
|
25
|
22
|
15°
|
||||||
|
350
|
14
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
400
|
16
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
450
|
18
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
500
|
20
|
255
|
16
|
25
|
22
|
15°
|
||||||
|
600
|
24
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
700
|
28
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
800
|
32
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
900
|
36
|
260
|
16
|
25
|
22
|
15°
|
||||||
|
1000
|
40
|
260
|
18
|
26
|
24
|
15°
|
||||||
|
1200
|
48
|
260
|
18
|
26
|
24
|
15°
|
||||||
|
1400
|
56
|
350
|
20
|
28
|
26
|
15°
|
||||||
|
1600
|
64
|
350
|
25
|
35
|
30
|
10°
|
||||||
|
1800
|
72
|
350
|
25
|
35
|
30
|
10°
|
||||||
|
2000
|
80
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2200
|
88
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2400
|
96
|
420
|
25
|
35
|
30
|
10°
|
||||||
|
2600
|
104
|
450
|
25
|
35
|
30
|
10°
|
||||||
|
2800
|
112
|
450
|
25
|
35
|
30
|
10°
|
||||||
|
3000
|
120
|
500
|
25
|
35
|
30
|
10°
|
||||||
|
Technische Bedingungen für Gummiverbindungen
|
|
|
|
|||
|
Typ
|
1
|
2
|
3
|
|||
|
Arbeitsdruck ((Kg f/cm2)
|
1.0(10)
|
1.6(16)
|
2.5(25)
|
|||
|
Explosionsdruck ((Kg f/cm2)
|
2.0(20)
|
3.0(30)
|
4.5 ((45)
|
|||
|
Der Wert des Vakuums ((mmHg)
|
2.0(20)
|
86.7 ((650)
|
100(750)
|
|||
|
Anwendbare Temperatur
|
|
|||||
